Wear-resistant Plate-Luoyang Huien Metal Products Co., Ltd.

Product Introduction

1. High wear resistance
The wear plate has very high hardness and wear resistance, which can effectively resist various wear and damage and extend the service life of the equipment.

2. Excellent corrosion resistance
The surface of the wear-resistant plate is coated with corrosion-resistant metal alloy, which can effectively prevent the equipment from being corroded and oxidized, and extend the service life of the equipment.

3. Good processability
Wear-resistant plate can be cold bending, cutting, welding and other processing, easy to manufacture and maintenance.

4. Low cost
Compared with conventional alloy steel plates and stainless steel plates, the cost of wear-resistant plates is lower, which can save costs for enterprises.

Specification

STANDARD SIZE STOCK LIST & NON-STANDARD SIZE CUSTOMIZATION

Product Name	Wear-resistant plate
Item	Wear-resistant plate is made of ordinary carbon steel adding a small amount of copper, nickel and other corrosion resistant elements, with steel strength, plastic extension, molding, welding and cutting, abrasion, high temperature, fatigue and other characteristics: weather resistance is times of ordinary carbon steel, coating is times of ordinary carbon steel, can reduce the use, bare use or simplify the use of painting. The steel has the characteristics of rust resistance, corrosion resistance, prolonging life, reducing consumption, saving energy and benefiting component manufacturers and users. The weathering resistant steel products are used to manufacture containers, railway vehicles, petroleum common shelves, harbor buildings, oil platforms and containers containing hydrogen sulfide corrosive media in chemical and petroleum equipment.
Material	05CuPCrNi-A,09CuPCrNi-A,SPA-H,Q235NH,Q295NH,Q450NQR1,Corten-A,Q550NQR1,Q700NQR1,Q500NQ,B480GNQ,Q400NQR1,NMIE0921,Q355NH,Q460NH,Q295GNHL,Q345GNHL,Q355GNHL,Q460GNHL,SMA400CW,B450NQ,B460NQ,NM360,NM400 ,Q450NQR1,COR-TEN,A588GrA
Standard	ASTM, DIN, ISO, EN, JIS, GB, etc
Length	1m-6m,or as required
Width	0.6m-2m, or as required
Thickness	0.1mm-400mm, or as required
Workflow	Hot rolled
MOQ	5 Ton
Supply ability	10000 Ton/ Per Month
Delivery time	Within 7-15 workdays after receiving deposit or L/C
Payment term	30% TT as deposit and the balance paid against copy of B/L
Package	seaworthy packing. Or as customer's request
Advantages	Showing the splendor of your quality, wear-resistant as well , strong corrosion resistance and decorative effect

Chemical Composition

STOCK GRADE & SPECIAL MATERIAL CUSTOMIZATION

Grade	C	Si	Mn	P	S	Cr	Mo	Ni	B
WNM360	≤0.25	≤0.70	≤1.30	≤0.025	≤0.010	≤1.4	≤0.50	≤1.00	≤0.004
WNM400	≤0.3	≤0.70	≤1.60	≤0.025	≤0.010	≤1.4	≤0.50	≤1.00	≤0.004
WNM450	≤0.35	≤0.70	≤1.70	≤0.025	≤0.010	≤1.5	≤0.55	≤1.00	≤0.004
WNM500	≤0.38	≤0.70	≤1.70	≤0.025	≤0.010	≤1.25	≤0.50	≤1.00	≤0.004
WNM550	≤0.38	≤0.70	≤1.70	≤0.025	≤0.010	≤1.25	≤0.50	≤1.00	≤0.004
WNM600	≤0.38	≤0.70	≤1.90	≤0.025	≤0.010	≤1.5	≤0.70	≤1.00	≤0.004

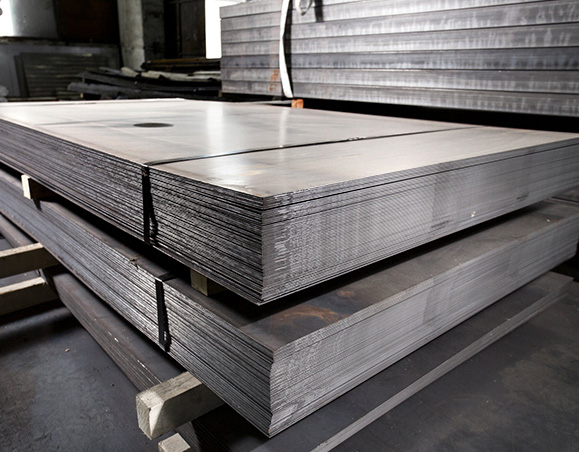

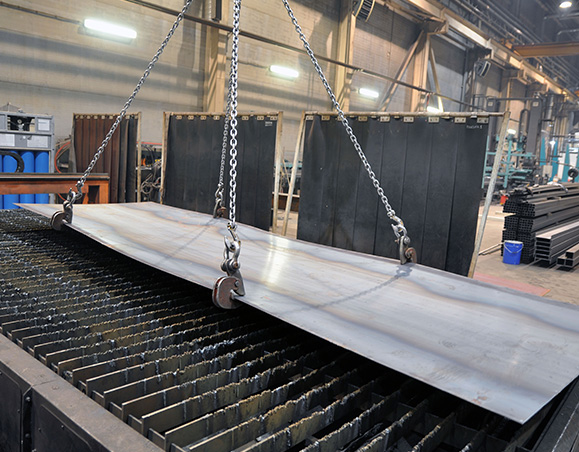

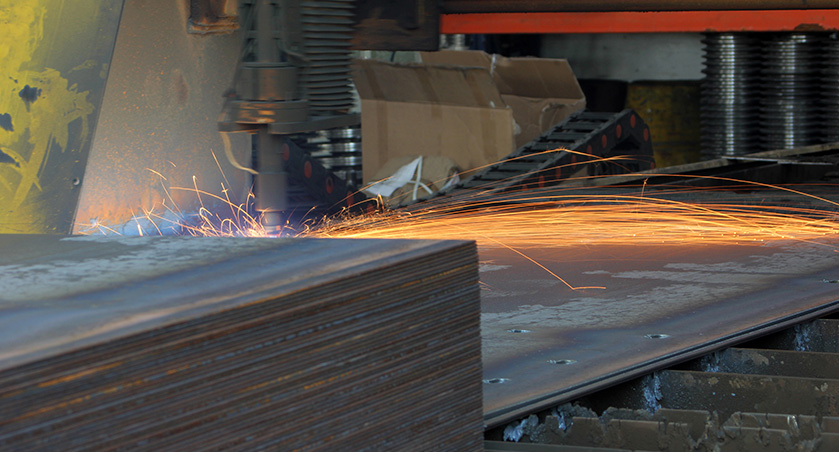

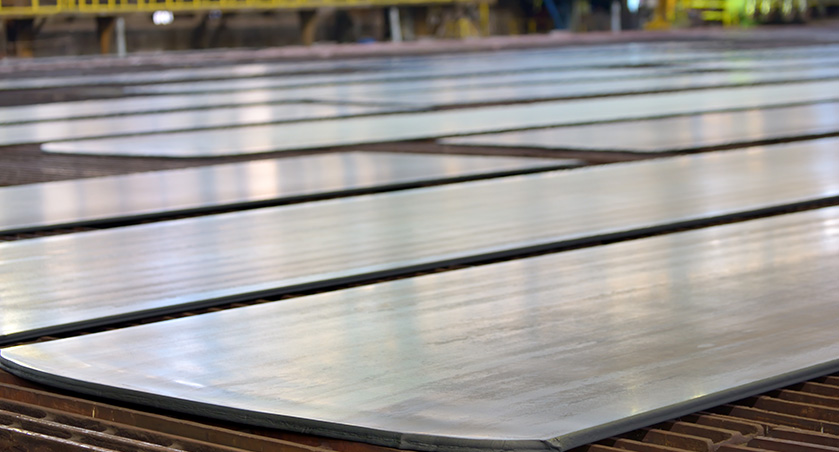

Carbon Steel Sheet in Factory
