Stainless Steel Square Pipe-Luoyang Huien Metal Products Co., Ltd.

Product Introduction

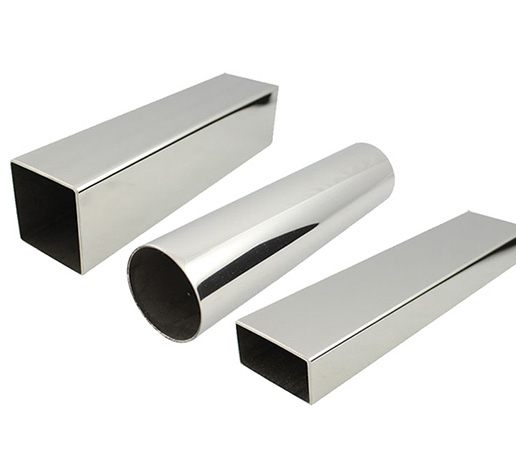

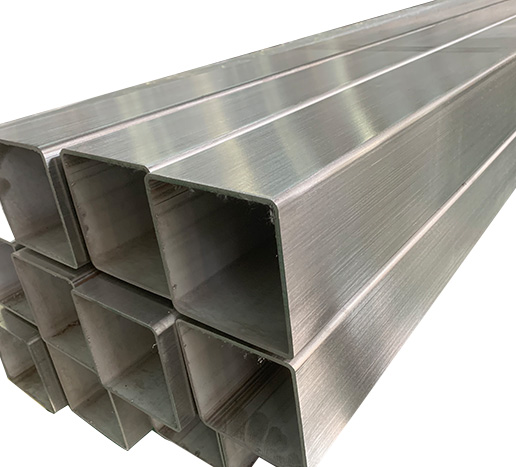

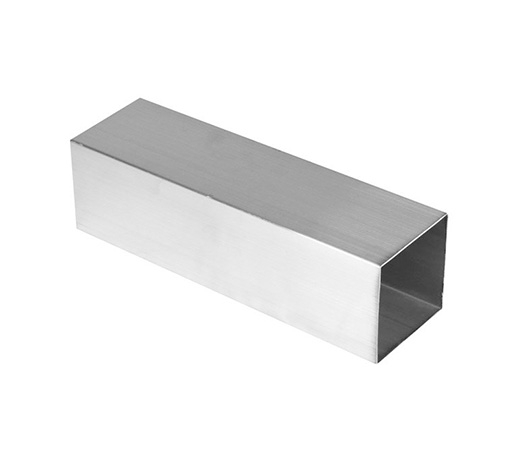

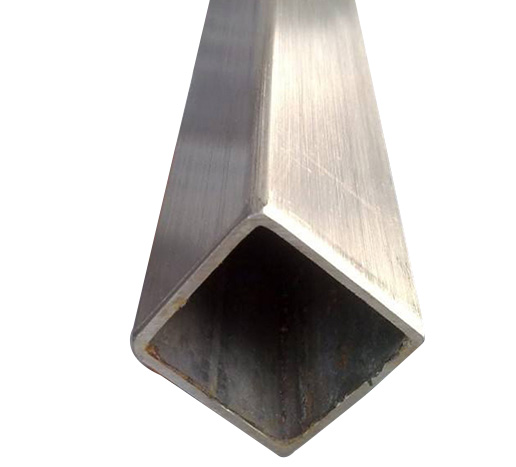

Stainless steel square tube is a hollow strip of steel, because the cross-section is square so called square tube. A large number of pipelines used to transport fluids, such as oil, natural gas, water, gas, steam, etc., in addition, in bending, torsional strength at the same time, light weight, so it is also widely used in the manufacture of mechanical parts and engineering structures.

Specification

STANDARD SIZE STOCK LIST & NON-STANDARD SIZE CUSTOMIZATION

Product Name	201 202 301 304 304L 304H 309 309S 310 310S 314 316 316L 316Ti 317 317L 321 321H 347 347H XM-19 904L
Origin	TISCO, POSCO, JISCO,TINGSHAN
Technique	Cold Rolled/ Hot Rolled
Surface	2B, No.1, BA, 2BA, NO.4, HL brushed, 8K Mirror, checkered, etched, embossing etc
Wall Thickness Range	0.15-50mm
Outdiameter Range	1 - 630mm Support Customization
Length Range	6m or as your request Other size can customized
Inspection	The Third Party inspection can be accepted
Available Standard	ASTM, AISI, SUS, JIS, EN, DIN, GB, ASME, etc.
Supply ability	10000 Ton/ Per Month
Delivery time	Within 8 days after confirming the order
Payment term	30% TT as deposit and the balance paid against copy of B/L
Package	PVC+ waterproof paper + strong sea-worthy wooden package
Advantages	Showing the splendor of your quality, wear-resistant as well , strong corrosion resistance and decorative effect

Chemical Composition

STOCK GRADE & SPECIAL MATERIAL CUSTOMIZATION

Type	Grade	Grade	Chemical Component %
Type	Grade	Grade	C	Cr	Ni	Mn	P	S	Mo	Si	Cu	N	Other
Austenitic	201	SUS201	≤0.15	16.00-18.00	3.50-5.50	5.50-7.50	≤0.060	≤0.030	-	≤1.00	-	≤0.25	-
	202	SUS202	≤0.15	17.00-19.00	4.00-6.00	7.50-10.00	≤0.060	≤0.030	-	≤1.00	-	≤0.25	-
	301	1.4310	≤0.15	16.00-18.00	6.00-8.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	≤0.10	-
	304	1.4301	≤0.07	17.00-19.00	8.00-10.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	304L	1.4307	≤0.030	18.00-20.00	8.00-10.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	304H	1.4948	0.04-0.10	18.00-20.00	8.00-10.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	309	1.4828	≤0.20	22.00-24.00	12.00-15.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	309S	*	≤0.08	22.00-24.00	12.00-15.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	-
	310	1.4842	≤0.25	24.00-26.00	19.00-22.00	≤2.00	≤0.045	≤0.030	-	≤1.50	-	-	-
	310S	*	≤0.08	24.00-26.00	19.00-22.00	≤2.00	≤0.045	≤0.030	-	≤1.50	-	-	-
	314	1.4841	≤0.25	23.00-26.00	19.00-22.00	≤2.00	≤0.045	≤0.030	-	1.50-3.00	-	-	-
	316	1.4401	≤0.08	16.00-18.50	10.00-14.00	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	-	-	-
	316L	1.4404	≤0.030	16.00-18.00	10.00-14.00	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	-	-	-
	316Ti	1.4571	≤0.08	16.00-18.00	10.00-14.00	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	-	0.1	Ti5（C+N)~0.70
	317	*	≤0.08	18.00-20.00	11.00-15.00	≤2.00	≤0.045	≤0.030	3.00-4.00	≤1.00	-	0.1	-
	317L	1.4438	≤0.030	18.00-20.00	11.00-15.00	≤2.00	≤0.045	≤0.030	3.00-4.00	≤1.00	-	0.1	-
	321	1.4541	≤0.08	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Ti5（C+N)-0.70
	321H	*	0.04-0.10	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Ti5（C+N)~0.70
	347	1.4550	≤0.08	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030	-	≤1.00	-	-	Nb≥10*C%-1.10
	347H	1.494	0.04-0.10	17.00-19.00	9.00-12.00	≤2.00	≤0.045	≤0.030		≤1.00	-	-	Nb≥10*C%-1.10
	XM-19	Nitronic50	≤0.06	20.50-23.50	11.50-13.50	4.0-6.0	≤0.045	≤0.030	1.50-3.00	≤1.00	-	0.2-0.4	Nb：0.10-0.30 V：0.10-0.30
	904L	N08904	≤0.02	19.0-23.0	23.0-28.0	4.0-5.0	≤0.045	≤0.035	-	≤1.00	-	0.1	Cu:1.0-2.0
Duplex	2205	S32205	≤0.03	22.0-23.0	4.5-6.5	≤2.00	≤0.030	≤0.020	3.0-3.5	≤1.00	-	0.14-0.20	-
	2507	S32750	≤0.03	24.0-26.0	6.0-8.0	≤1.20	≤0.035	≤0.020	3.0-3.5	≤0.80	0.5	0.24-0.32	-
	*	S32760	≤0.03	24.0-26.0	6.0-8.0	≤1.00	≤0.030	≤0.010	3.0-4.0	≤1.00	0.5-1.00	0.2-0.3	-
	2304	S32304	≤0.03	21.5-24.5	3.0-5.5	≤2.50	≤0.040	≤0.030	0.05-0.6	≤1.00	0.05-0.6	0.05-0.2	-
	329	1.4460	≤0.08	23.00-28.00	2.00-5.00	≤1.00	≤0.040	≤0.030	1.00-2.00	≤0.75	-	-	-
Ferrite	409	S40900	≤0.03	10.50-11.70	0.5	≤1.00	≤0.040	≤0.020	-	≤1.00	-	≤0.030	Ti6（C+N)-0.50 Nb:0.17
	430	1Cr17	≤0.12	16.00-18.00	-	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	444	S44400	≤0.025	17.50-19.50	1	≤1.00	≤0.040	≤0.030	1.75-2.5	≤1.00	-	0.035	-
	446	S44600	≤0.20	23.00-27.00	0.75	≤1.50	≤0.040	≤0.030	1.50-2.50	≤1.00	-	≤0.25	-
Martensite	410	1Cr13	0.08-0.15	11.50-13.50	0.75	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	410S	*	≤0.080	11.50-13.50	0.6	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	416	Y1Cr13	≤0.15	12.00-14.00	3.0	≤1.25	≤0.060	≥0.15	-	≤1.00	-	-	-
	420	2Cr13	≥0.15	12.00-14.00	-	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	420J2	3Cr13	0.26-0.35	12.00-14.00	-	≤1.00	≤0.040	≤0.030	-	≤1.00	-	-	-
	431	1Cr17Ni2	≤0.20	15.00-17.00	1.50-2.50	≤1.00	≤0.040	≤0.030	-	≤0.80	-	-	-
	440C	11Cr17	0.95-1.20	16.00-18.00	-	≤1.00	≤0.040	≤0.030	0.75	≤1.00	-	-	-
PH	630	17-4PH	≤0.07	15.00-17.50	3.00-5.00	≤1.00	≤0.035	≤0.030	-	≤1.00	3.00-5.00	-	Nb 0.15-0.45
	631	17-7PH	≤0.09	16.00-18.00	6.50-7.50	≤1.00	≤0.035	≤0.030	-	≤1.00	≤0.50	-	Al 0.75-1.50
	632	15-5PH	≤0.09	14.00-16.00	3.50-5.50	≤1.00	≤0.035	≤0.030	2.00-3.00	≤1.00	2.5-4.5	-	Al 0.75-1.50

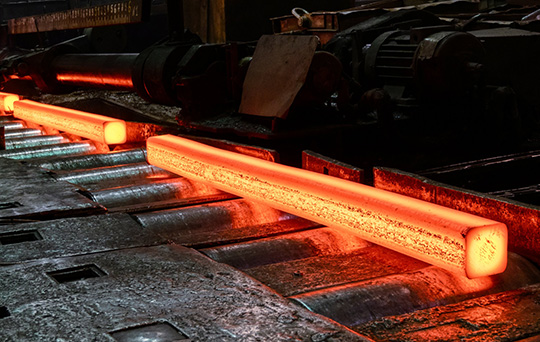

Producing Stainless Steel Pipe

The images presented below provide a glimpse into the production process of stainless steel pipes. With the utilization of advanced mechanical equipment, we specialize in crafting products of the highest caliber. Our products have successfully met the rigorous standards set by ISO, SGS, AEO, IAF, and CNAS quality certifications. This serves as a testament to our commitment to producing exceptional products through the use of expert mechanical engineering.

Shipping

Our proficient stainless-steel pipe packaging and shipping process ensures the safe transit of your goods. Typically, each stainless-steel pipe is enveloped with a protective layer of plastic packaging, after which they are carefully placed within shipping containers. Alternatively, we are more than willing to accommodate any specific packaging preferences you might have. Your satisfaction and the secure delivery of our products are our foremost priorities.
