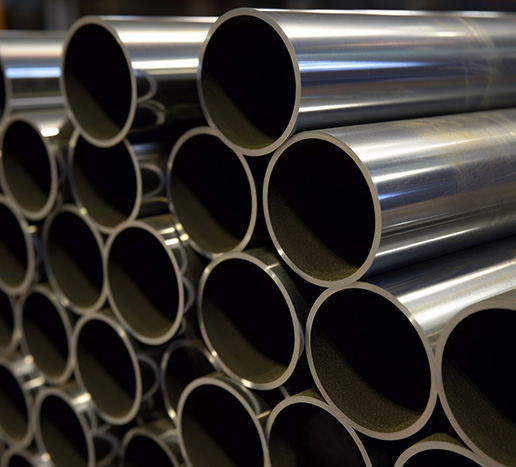

Duplex/Super Duplex Stainless Steel Pipe

Material:2205 2507 2304 2101 2202 S31803 S32205 S32750 S32304 S32101 1.4462 1.4362 1.4410 etc.

Wall thickness:0.15-50mm

Outdiameter:1-630mm

Standard:AISI, ASTM, DIN, JIS, GB,JIS, SUS, EN, etc

Certification: ISO SGS BV CE DNV

Surface:2B, No.1, BA, 2BA, NO.4, HL brushed, 8K Mirror, checkered, etched, embossing etc

Stock: 8000 Ton/Month

Product Introduction

1.The chromium content of 18%-22% dual-phase stainless steel has good resistance to neutral chloride stress corrosion under low stress.

2.Containing key two-phase stainless steel pipe has good corrosion resistance.

3.It has good corrosion fatigue and wear corrosion resistance, and is used in pumps, valves and other equipment under certain corrosive medium conditions.

4.Good comprehensive mechanical properties, high strength and fatigue strength, yield strength is 18-8 type austenitic stainless steel 25 times.

5.Good weldability, small hot cracking tendency.

6.Compared with austenitic stainless steel, the thermal conductivity is large and the linear expansion coefficient is small, which is also suitable for the manufacture of the tube core of the heat exchanger.

Specification

STANDARD SIZE STOCK LIST & NON-STANDARD SIZE CUSTOMIZATION

Product Name Duplex/Super Duplex Stainless Steel Pipe
Origin TISCO, POSCO, JISCO,TINGSHAN
Technique Cold Rolled/ Hot Rolled
Surface 2B, No.1, BA, 2BA, NO.4, HL brushed, 8K Mirror, checkered, etched, embossing etc
Wall Thickness Range 0.15-50mm
Outdiameter Range 1 - 630mm Support Customization
Length Range 6m or as your request Other size can customized
Inspection The Third Party inspection can be accepted
Available Standard ASTM, AISI, SUS, JIS, EN, DIN, GB, ASME, etc.
Supply ability 10000 Ton/ Per Month
Delivery time Within 8 days after confirming the order
Payment term 30% TT as deposit and the balance paid against copy of B/L
Package PVC+ waterproof paper + strong sea-worthy wooden package
Advantages Showing the splendor of your quality, wear-resistant as well , strong corrosion resistance and decorative effect

Chemical Composition

STOCK GRADE & SPECIAL MATERIAL CUSTOMIZATION

Name UNS En No. C Mn Si Cr Ni Mo N Cu Other PREN
2101 S32101 1.4162 0.04 4.0–6.0 1 21.0–22.0 1.35–1.70 0.1–0.8 0.20–0.25 0.1–0.8 - 25–27
2202 S32202 1.4062 0.03 2 1 21.5–24.0 1.00–2.80 0.45 0.18–0.26 - - 25–28
2304 S32304 1.4362 0.03 2.5 1 21.5–24.5 3.0–5.5 0.05–0.6 - - - 25–28
2102 S82011 - 0.03 2.0–3.0 1 20.5–23.5 1.0–2.0 0.1–1.0 0.15–0.27 0.50–0.60 - 25–27
2205 S31803 1.4462 0.03 2 1 21.0–23.0 4.5–6.5 2.5–3.5 0.08–0.20 - - 33–35
2205 S32205 1.4462 0.03 2 1 22.0–23.0 4.5–6.5 3.0–3.5 0.14–0.20 - - 35–36
255 S32550 S32760 0.04 1.5 1 24.0–27.0 4.5–6.5 2.9–3.9 0.10–0.25 1.5–2.5 - 38–41
2507 S32750 1.441 0.03 1.2 0.8 24.0–26.0 6.0–8.0 3.0–5.0 0.24–0.32 0.5 - 40–43
Z100 S32760 1.4501 0.03 1 1 24.0–26.0 6.0–8.0 3.0–4.0 0.20–0.30 0.50–1.00 W 0.5–1.0 40–43
2707 S32707 - 0.03 1.5 0.5 26.0–29.0 5.5–9.5 4.0–5.0 0.30–0.50 1 Co 0.5–2.0 49–50
S33207 - 0.03 1.5 0.8 29.0–33.0 6.0–9.0 3.0–5.0 0.40–0.60 1 52–53

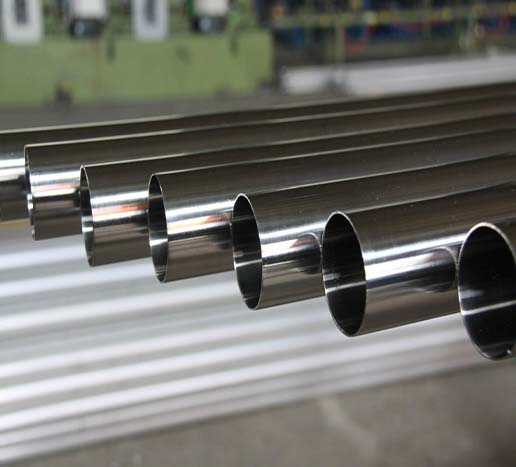

Stainless Steel Pipe Producing

The images presented below provide a glimpse into the production process of stainless steel pipes. With the utilization of advanced mechanical equipment, we specialize in crafting products of the highest caliber. Our products have successfully met the rigorous standards set by ISO, SGS, AEO, IAF, and CNAS quality certifications. This serves as a testament to our commitment to producing exceptional products through the use of expert mechanical engineering.

Shipping and Packaging

Our proficient stainless-steel pipe packaging and shipping process ensures the safe transit of your goods. Typically, each stainless-steel pipe is enveloped with a protective layer of plastic packaging, after which they are carefully placed within shipping containers. Alternatively, we are more than willing to accommodate any specific packaging preferences you might have. Your satisfaction and the secure delivery of our products are our foremost priorities.
