Wall thickness：0.15-50mm
Outdiameter：1-630mm
Standard：AISI, ASTM, DIN, JIS, GB,JIS, SUS, EN, etc
Certification: ISO SGS BV CE DNV
Material：201 202 301 304 304L 304H 309 309S 310 310S 314 316 316L 316Ti 317 317L 321 321H 347 347H XM-19 904L etc.
Surface：2B, No.1, BA, 2BA, NO.4, HL brushed, 8K Mirror, checkered, etched, embossing etc
Stock: 8000 Ton/Month
Whatsapp:
+8613255217838E-mail:
sales@huissmetal.com1. safety and environmental protection: color stainless steel is an environmentally friendly decorative material, does not contain class A organic matter, no weaving, spraying, safety and fire prevention.
2. on the basis of the traditional stainless steel pipe, through embossed and vacuum color plating, you can depict various graphics and text on the surface of the stainless steel pipe, with three-dimensional and concave sense, farewell to the monotonous color and surface defects of the traditional stainless steel pipe;
3. strong corrosion resistance: because the color non-cast steel plate not only maintains the physical, chemical and mechanical properties of primary stainless steel, but also has better corrosion resistance than primary stainless steel. Good corrosion resistance.
4.high temperature and wear resistance: color stainless steel plate and color surface can reach 200℃, salt spray corrosion resistance is better than ordinary stainless steel. The wear and scratch resistance of colored stainless steel plates is comparable to that of gold-plated foils.
5. beautiful appearance and color: colored stainless steel not only has the unique luster and strength of metal, but also has a variety of colors, color lasting.
6. The color stainless steel tube is coated with an oxide layer on the surface of the stainless steel tube through a chemical reaction. Plating color and stainless steel tube integrated, durable, fast fading.
7. the color stainless steel pipe has the luster and hardness of metal, easy to clean, not easy to damage. Can prevent acid and alkali corrosion, not easy to rust;
Color stainless steel pipe has many advantages, making it widely used in large buildings, hotel decoration and building commercial decoration, public facilities, new house decoration and so on. In the future life, color stainless steel tubes will be more widely used in all aspects of social
STANDARD SIZE STOCK LIST & NON-STANDARD SIZE CUSTOMIZATION
| Product Name | 201 202 301 304 304L 304H 309 309S 310 310S 314 316 316L 316Ti 317 317L 321 321H 347 347H XM-19 904L |
| Origin | TISCO, POSCO, JISCO,TINGSHAN |
| Technique | Cold Rolled/ Hot Rolled |
| Surface | 2B, No.1, BA, 2BA, NO.4, HL brushed, 8K Mirror, checkered, etched, embossing etc |
| Wall Thickness Range | 0.15-50mm |
| Outdiameter Range | 1 - 630mm Support Customization |
| Length Range | 6m or as your request Other size can customized |
| Inspection | The Third Party inspection can be accepted |
| Available Standard | ASTM, AISI, SUS, JIS, EN, DIN, GB, ASME, etc. |
| Supply ability | 10000 Ton/ Per Month |
| Delivery time | Within 8 days after confirming the order |
| Payment term | 30% TT as deposit and the balance paid against copy of B/L |
| Package | PVC+ waterproof paper + strong sea-worthy wooden package |
| Advantages | Showing the splendor of your quality, wear-resistant as well , strong corrosion resistance and decorative effect |
STOCK GRADE & SPECIAL MATERIAL CUSTOMIZATION
| Type | Grade | Grade | Chemical Component % | ||||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | Other | |||
| Austenitic | 201 | SUS201 | ≤0.15 | 16.00-18.00 | 3.50-5.50 | 5.50-7.50 | ≤0.060 | ≤0.030 | - | ≤1.00 | - | ≤0.25 | - |
| 202 | SUS202 | ≤0.15 | 17.00-19.00 | 4.00-6.00 | 7.50-10.00 | ≤0.060 | ≤0.030 | - | ≤1.00 | - | ≤0.25 | - | |
| 301 | 1.4310 | ≤0.15 | 16.00-18.00 | 6.00-8.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | ≤0.10 | - | |
| 304 | 1.4301 | ≤0.07 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 304L | 1.4307 | ≤0.030 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 304H | 1.4948 | 0.04-0.10 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 309 | 1.4828 | ≤0.20 | 22.00-24.00 | 12.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 309S | * | ≤0.08 | 22.00-24.00 | 12.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 310 | 1.4842 | ≤0.25 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.50 | - | - | - | |
| 310S | * | ≤0.08 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.50 | - | - | - | |
| 314 | 1.4841 | ≤0.25 | 23.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | 1.50-3.00 | - | - | - | |
| 316 | 1.4401 | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - | |
| 316L | 1.4404 | ≤0.030 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - | |
| 316Ti | 1.4571 | ≤0.08 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | 0.1 | Ti5（C+N)~0.70 | |
| 317 | * | ≤0.08 | 18.00-20.00 | 11.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | 3.00-4.00 | ≤1.00 | - | 0.1 | - | |
| 317L | 1.4438 | ≤0.030 | 18.00-20.00 | 11.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | 3.00-4.00 | ≤1.00 | - | 0.1 | - | |
| 321 | 1.4541 | ≤0.08 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | Ti5（C+N)-0.70 | |
| 321H | * | 0.04-0.10 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | Ti5（C+N)~0.70 | |
| 347 | 1.4550 | ≤0.08 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | Nb≥10*C%-1.10 | |
| 347H | 1.494 | 0.04-0.10 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | - | - | Nb≥10*C%-1.10 | ||
| XM-19 | Nitronic50 | ≤0.06 | 20.50-23.50 | 11.50-13.50 | 4.0-6.0 | ≤0.045 | ≤0.030 | 1.50-3.00 | ≤1.00 | - | 0.2-0.4 | Nb：0.10-0.30 V：0.10-0.30 | |
| 904L | N08904 | ≤0.02 | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | ≤0.045 | ≤0.035 | - | ≤1.00 | - | 0.1 | Cu:1.0-2.0 | |
| Duplex | 2205 | S32205 | ≤0.03 | 22.0-23.0 | 4.5-6.5 | ≤2.00 | ≤0.030 | ≤0.020 | 3.0-3.5 | ≤1.00 | - | 0.14-0.20 | - |
| 2507 | S32750 | ≤0.03 | 24.0-26.0 | 6.0-8.0 | ≤1.20 | ≤0.035 | ≤0.020 | 3.0-3.5 | ≤0.80 | 0.5 | 0.24-0.32 | - | |
| * | S32760 | ≤0.03 | 24.0-26.0 | 6.0-8.0 | ≤1.00 | ≤0.030 | ≤0.010 | 3.0-4.0 | ≤1.00 | 0.5-1.00 | 0.2-0.3 | - | |
| 2304 | S32304 | ≤0.03 | 21.5-24.5 | 3.0-5.5 | ≤2.50 | ≤0.040 | ≤0.030 | 0.05-0.6 | ≤1.00 | 0.05-0.6 | 0.05-0.2 | - | |
| 329 | 1.4460 | ≤0.08 | 23.00-28.00 | 2.00-5.00 | ≤1.00 | ≤0.040 | ≤0.030 | 1.00-2.00 | ≤0.75 | - | - | - | |
| Ferrite | 409 | S40900 | ≤0.03 | 10.50-11.70 | 0.5 | ≤1.00 | ≤0.040 | ≤0.020 | - | ≤1.00 | - | ≤0.030 | Ti6（C+N)-0.50 Nb:0.17 |
| 430 | 1Cr17 | ≤0.12 | 16.00-18.00 | - | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 444 | S44400 | ≤0.025 | 17.50-19.50 | 1 | ≤1.00 | ≤0.040 | ≤0.030 | 1.75-2.5 | ≤1.00 | - | 0.035 | - | |
| 446 | S44600 | ≤0.20 | 23.00-27.00 | 0.75 | ≤1.50 | ≤0.040 | ≤0.030 | 1.50-2.50 | ≤1.00 | - | ≤0.25 | - | |
| Martensite | 410 | 1Cr13 | 0.08-0.15 | 11.50-13.50 | 0.75 | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤1.00 | - | - | - |
| 410S | * | ≤0.080 | 11.50-13.50 | 0.6 | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 416 | Y1Cr13 | ≤0.15 | 12.00-14.00 | 3.0 | ≤1.25 | ≤0.060 | ≥0.15 | - | ≤1.00 | - | - | - | |
| 420 | 2Cr13 | ≥0.15 | 12.00-14.00 | - | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 420J2 | 3Cr13 | 0.26-0.35 | 12.00-14.00 | - | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤1.00 | - | - | - | |
| 431 | 1Cr17Ni2 | ≤0.20 | 15.00-17.00 | 1.50-2.50 | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤0.80 | - | - | - | |
| 440C | 11Cr17 | 0.95-1.20 | 16.00-18.00 | - | ≤1.00 | ≤0.040 | ≤0.030 | 0.75 | ≤1.00 | - | - | - | |
| PH | 630 | 17-4PH | ≤0.07 | 15.00-17.50 | 3.00-5.00 | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | 3.00-5.00 | - | Nb 0.15-0.45 |
| 631 | 17-7PH | ≤0.09 | 16.00-18.00 | 6.50-7.50 | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | ≤0.50 | - | Al 0.75-1.50 | |
| 632 | 15-5PH | ≤0.09 | 14.00-16.00 | 3.50-5.50 | ≤1.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.00 | 2.5-4.5 | - | Al 0.75-1.50 | |

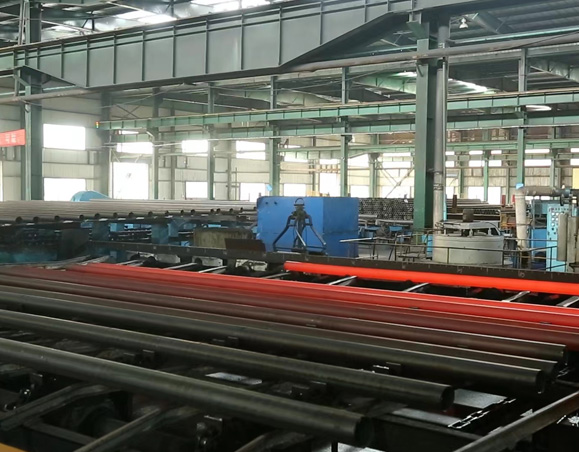

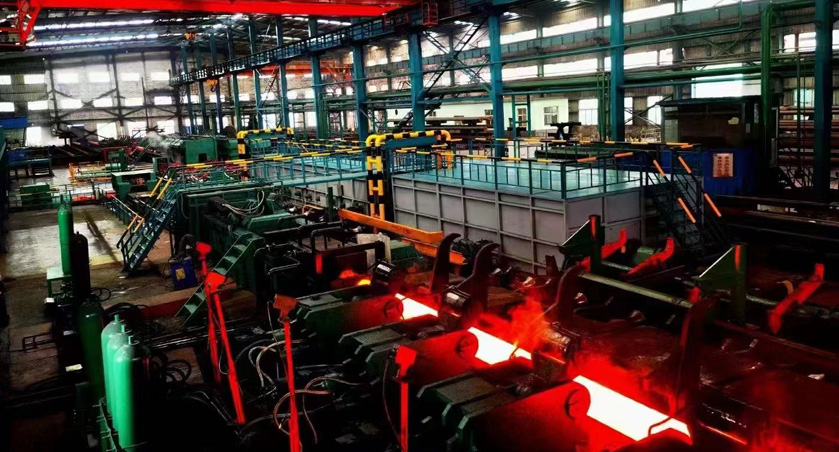

The images presented below provide a glimpse into the production process of stainless steel pipes. With the utilization of advanced mechanical equipment, we specialize in crafting products of the highest caliber. Our products have successfully met the rigorous standards set by ISO, SGS, AEO, IAF, and CNAS quality certifications. This serves as a testament to our commitment to producing exceptional products through the use of expert mechanical engineering.
Our proficient stainless-steel pipe packaging and shipping process ensures the safe transit of your goods. Typically, each stainless-steel pipe is enveloped with a protective layer of plastic packaging, after which they are carefully placed within shipping containers. Alternatively, we are more than willing to accommodate any specific packaging preferences you might have. Your satisfaction and the secure delivery of our products are our foremost priorities.
Please contact us for free quotation by form below. We promise the quickest response within 24 hours:
