Product Introduction

1.Low density.
The parameter of aluminum plate is 2.7G/CM³, so it has good density and small performance, better than the general aluminum plate, good rigidity and high strength. 3.0mm thick aluminum plate weighs 8kg per square plate. To a certain extent, it ensures the flat surface of the aluminum curtain wall, wind pressure resistance, impact resistance, etc., which can effectively reduce the load of the building.

2. good thermal conductivity.
The parameter of the aluminum plate is 2MM, so it has good electrical and thermal conductivity, which is better than other aluminum plates. The aluminum plate is very good in weather resistance, self-cleaning and ultraviolet resistance, acid resistance and alkali resistance, which can effectively resist acid rain, outdoor air pollution and ultraviolet corrosion. Aluminum veneer is composed of a special molecular layout, dust will not easily fall on it, with outstanding self-cleaning function.

3. Good extensibility.
The parameter of aluminum plate is 3.25MM, so it has good extension performance, better than ordinary aluminum plate, aluminum veneer coating selection is gloss attributed to matte type coating, which not only maintains the international prevailing bright school personality but also deals with the problem of light pollution of glass curtain wall, is a rare recycling, green goods. At the same time, aluminum materials can also be recycled and reused, which is conducive to environmental protection.

Specification

STANDARD SIZE STOCK LIST & NON-STANDARD SIZE CUSTOMIZATION

Product Name	aluminum sheet
Thickness	0.01mm-10mm
Width	20mm-2000mm
inner diameter	76,152,305,505mm(as per requirements)
weight	2000kg-3000kg
Material	1050,1060,1100,3003,3004,3005,3105,5052,
Material	5005,5754,5083,6061,6063 etc
Temper	O,H12,H14,H16,H18,H24,H26,H32,H34,H111,H112,T3,T5,T6 etc
Surface	flat,color coated , with kraftpaper,embossed etc
Edge	Mill edge, slit edge
Inspection	The Third Party inspection can be accepted
MOQ	5 Ton
Supply ability	10000 Ton/ Per Month
Delivery time	Within 8 days after confirming the order
Payment term	30% TT as deposit and the balance paid against copy of B/L
Package	PVC+ waterproof paper + strong sea-worthy wooden package
Advantages	Showing the splendor of your quality, wear-resistant as well , strong corrosion resistance and decorative effect
Remark	Specific requirement of alloy grade,temper or specification can be discussed at your request

Chemical Composition

STOCK GRADE & SPECIAL MATERIAL CUSTOMIZATION

			Chemical Composition (%)
Series	ASTM	JIS	Si	Fe	Cu	Me	Mg	Zn	Ti	Cr	Ni	V	Other	Al
1000 Series	1070	A1070	0.2	0.25	0.04	0.03	0.03	0.04	0.03	-	-	0.05	0.03	99.7
	1050	A1050	0.25	0.4	0.05	0.05	0.05	0.05	0.03	-	-	0.05	0.03	99.4
	1100	A1100	Si+Fe 0.95		0.05-0.2	0.05	-	0.1	-	-	-	-	0.05	99.0
2000 Series	2011	A2011	0.4	0.7	5-6	-	-	0.3	-	-	-	-	0.05	Bal
	2014	A2014	0.5-1.2	0.7	3.9-5	0.4-1.2	0.2-0.8	0.25	0.15	0.1	-	-	-	Bal
	2017	A2017	0.2-0.8	0.7	3.5-4.5	0.4-1.0	0.4-0.8	0.25	0.15	0.1	-	-	-	Bal
	2024	A2024	0.5	0.50	3.8-4.9	0.3-0.9	1.2-1.8	0.25	0.15	0.1	-	-	-	Bal
3000 Series	3003	A3003	0.6	0.7	0.05-0.2	1-1.5	-	0.1	-	-	-	-	0.05	Bal
3000 Series	3004	A3004	0.3	0.7	0.25	1-1.5	0.8-1.3	0.25	-	-	-	-	0.05	Bal
5000 Series	5052	A5052	0.25	0.4	0.1	0.1	2.2-2.8	0.1	-	0.15-0.35	-	-	0.05	Bal
	5056	A5056	0.3	0.4	0.1	0.05-0.2	4.5-5.6	0.1	-	0.05-0.2	-	-	0.05	Bal
	5083	A5083	0.4	0.4	0.1	0.4-1	4-4.9	0.25	0.15	0.05-0.25	-	-	0.05	Bal
6000 Series	6061	A6061	0.4-0.8	0.7	0.2	0.15	0.8-1.2	0.25	0.15	0.04-0.35	-	-	0.05	Bal
	6053	A6053	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	-	-	0.05	Bal
	6013	A6013	0.6-1.0	0.5	0.6-1.1	0.2-0.8	0.8-1.2	0.25	0.1	-	-	-	0.05	Bal
	6011	A6011	0.6-2.0	1	0.4-0.9	0.8	0.6-1.2	12	0.2	0.3	0.2	-	0.05	Bal
	6066	A6066	0.9-1.8	0.5	0.7-1.2	0.15	0.8-1.4	0.25	0.2	0.4	0.15	-	0.05	Bal

Application

Aluminum has a series of excellent properties: density, weight and strength is not high, easy processing, corrosion resistance, electrical conductivity, thermal conductivity, highly reflective, non-magnetic Due to these characteristics, aluminum and aluminum alloy has a wide range of applications

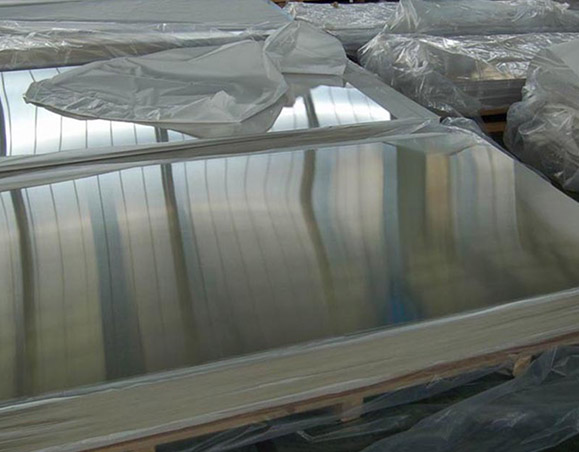

Shipping and Packaging

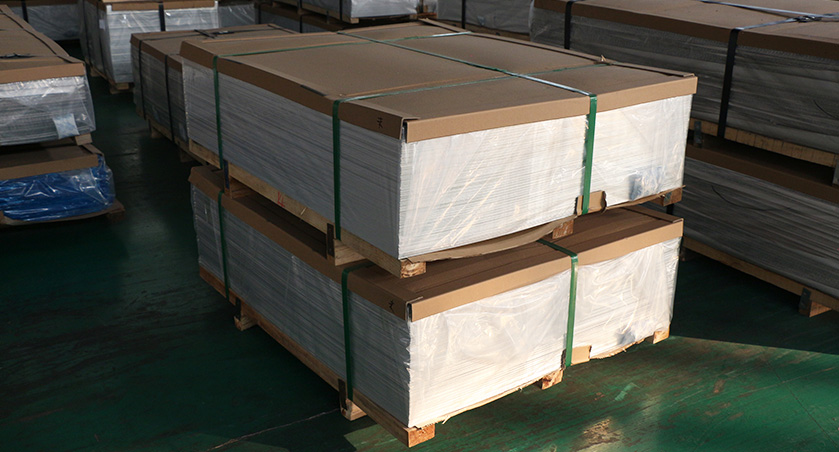

Aluminum products meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery.

There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
